Si-30
Compact design for installation versatility
The high performance Si-30 is suitable for air-conditioning units up to 20 kW.
The piston technology is specifically designed for removing condensates from air conditioning systems.
The Si-30 is fully reliable in any kind of environment. Its operating sound level will remain silent whatever the volume of condensates.
Patented Piston Technology
MEASURE DETAILS
Max flow rate 5 gph
20 l/h
Max discharge head 33 ft
10 m
Max pressure 46 inches
14 mm
Max suction head 10 inches
3 mm
Insulation class Double insulation
Mains supply 230V~ 50Hz - 14 W
Operation conditions 100%
Protection IP20
Master pack quantity 20
Safety switch NC 8 A resistive - 250 V
Detection Detection unit

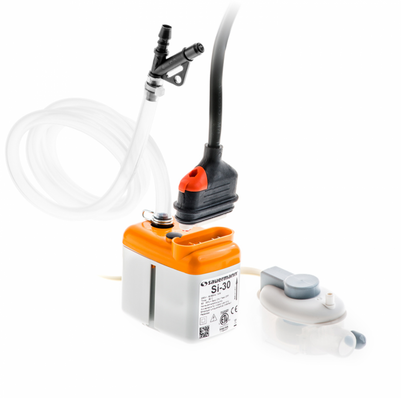

KIT CONTENT
1 Si-30 pump
1 Clear PVC tube int. 1/4 (6mm) – L: 3 ¼ (1m), fitted with a « Drain Safe Device » pre-mounted.
1 Anti-vibration mounting bracket
1 5ft (1.5 m) lockable plug-in power cable: 2 power wires, 2 safety contact wires.
1 6 tie wraps, 1/10'' x 4'' (2.5 x 100 mm)
1 Detection unit - SI2958, 5 ft (1.5 m) cable
1 Detection unit installation kit:rubber elbow 90°, vent tube, mounting rail, adhesive.
PUMP DIMENSIONS
Length Width Height
Pump 66 mm 43.5 mm 60 mm
Packaging 135 mm 135 mm 90 mm
SAFETY STANDARDS
CE
UL/CSA by Intertek
ROHS AND WEE DIRECTIVES
Compliant
Ref: SI30CE01UN23
